Servo Hydraulic Universal Testing Machine Dual Column Hansa
HTD Series Dual Column Floor Model
HTD Series Dual Column Floor Model
Hansa Technologies offers a comprehensive range of Servo Hydraulic Universal Dynamic Testing Machines designed to deliver unmatched precision, versatility, and durability. Having force capacities ranging from 5kN to 3000kN, our machines cater to a wide spectrum of materials and applications from delicate materials testing to high strength steel analysis.
Built with state-of-the-art technology and robust engineering, these machines ensure consistent and repeatable results for tensile, compression, bending, shear, low cycle and high cycle fatigue, fracture mechanics tests. The advanced load frame design offers unmatched stiffness and minimizes deflection. The high resolution digital control system provides accurate measurement, precise control and smooth operation.
Equipped with the latest features such as intuitive software interfaces, programmable test sequences, and real-time data acquisition, users can perform complex tests with ease and confidence. The machines are compatible with various grips, fixtures, and extensometers to suit diverse industry standards, including ASTM, ISO, DIN, IS, BIS and more.
Whether in research laboratories, quality control departments, or educational institutions, Hansa’s HTD Series Dynamic Testing Machines empower professionals to evaluate material properties with exceptional accuracy, enabling informed decisions for design, production, and safety.
Category:
Universal testing machine

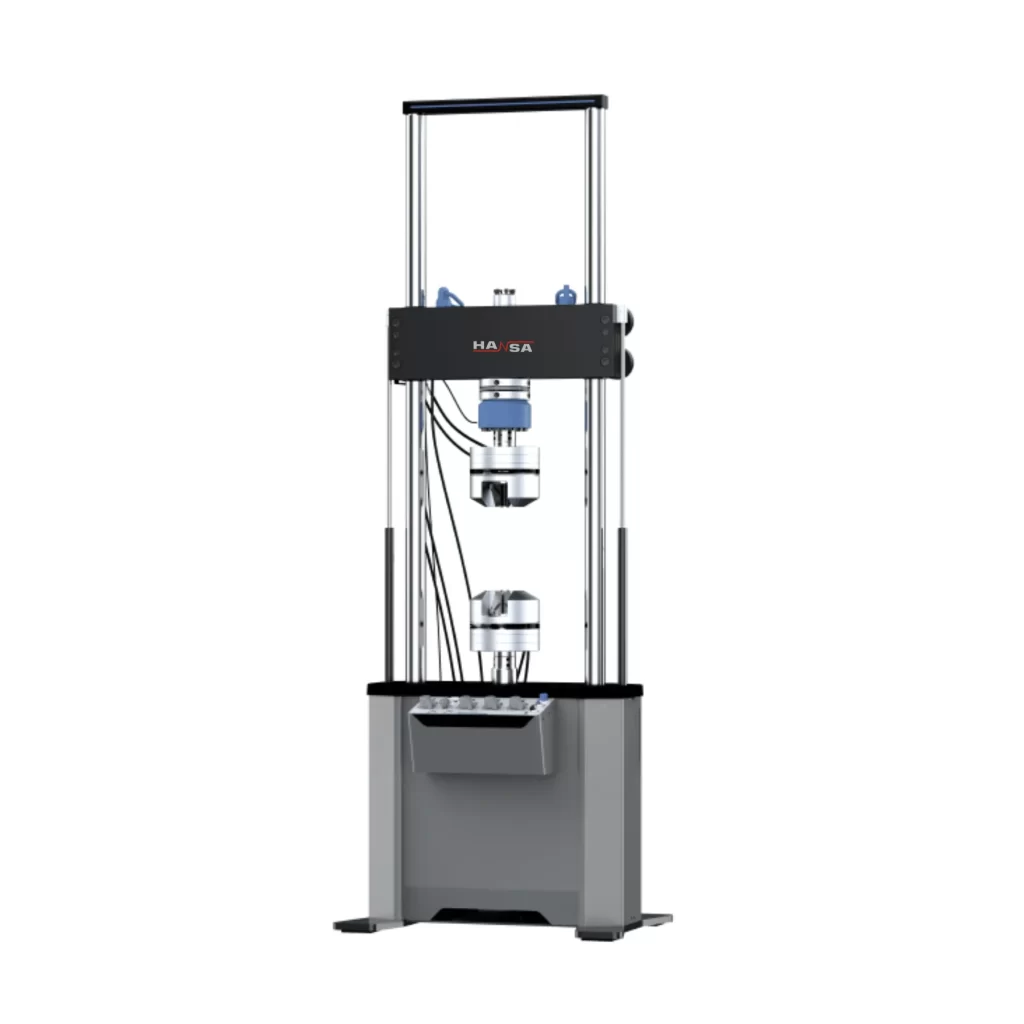

The Hansa HTD Series Floor Model is a robust servo-hydraulic universal testing machine designed for high-force applications where precise tensile, compression, bending and shear testing of materials is required. These machines use a hydraulic actuator controlled by electronic feedback to apply smooth, accurate loads, making them well-suited for heavy-duty testing workflows in production and research labs. They comply with international standards like ASTM, ISO, DIN and BIS and support a variety of grips and fixtures for different specimen types
Servo Hydraulic Testing Systems are designed to meet the demanding requirements of both static and dynamic testing. They deliver complete testing solutions for advanced materials and component evaluation, making them ideally suited for quasi-static tests, high- and low-cycle fatigue, thermomechanical fatigue, and fracture mechanics applications.
The Load Frame features a moving column design, which makes it exceptionally compact yet highly versatile—an ideal all-round system for a wide range of testing applications. It offers high-stiffness frame, flexible sizing options, adjustable actuator position, and T-slot table (optional), is particularly suited for component and composite testing where precise alignment is critical.
Both systems are exceptionally reliable and versatile, supporting a wide spectrum of materials and applications. Their compact and flexible configurations enable installation in most laboratory environments without the need for reinforced flooring or increased ceiling height
The exact model specifications can vary by force capacity, but typical features you can expect from a Hansa HTD floor model include:
Force Capacity Range:
Available in medium to high capacities suitable for heavy testing, often ranging from several hundred kN up to multiple MN (depending on selected model – custom options available with Hansa).
Frame Design:
Sturdy floor-mounted dual-column or multi-column frame with high rigidity to resist bending during heavy loads, keeping test alignment precise.
Hydraulic Actuation:
Servo-controlled hydraulic drive system for smooth application of load under electronic closed-loop control, enabling accurate static and dynamic tests with programmable load profiles.
Displacement & Load Measurement:
High-resolution displacement transducers and calibrated load cells deliver accurate readings of extension and force during tests, with data acquired digitally via software.
Control & Software:
PC-based control software allows real-time plotting of load vs. extension curves, automatic calculation of mechanical properties and customizable test reports that comply with standards.
Hydraulic Power Unit:
Energy-efficient HPU with noise-reduction, temperature control and weather-protected design, capable of long-duration operation with automatic shutdown on over-temperature or low oil conditions.
The Hansa HTD Series Floor Model is widely used in industrial, R&D and quality control labs for:
Determining tensile and yield strength of metals and alloys.
Compression testing of structural materials and components.
Bending and flexural tests on beams and polymer composites.
Material characterization for plastics, composites, elastomers and fasteners.
Compliance and validation testing per ASTM, ISO and national standards.
- Tensile , Compression
- 3 & 4 Point Bend
- Low Cycle Fatigue
- High Cycle Fatigue
- K1c, J1c & Fatigue Crack Growth Rate
- Civil applications for Rebar & Rebar coupler static & fatigue
- ASTM E8 / 8M, E21, A370, B557, E9, E466, E606, E1820, E399, E647
- ASTM E9, E209, E290
- ASTM D3039, D7264, D3479
- IS16172
1. What is the Hansa HTD Series Floor Model?
It is a heavy-duty servo hydraulic universal testing machine designed for high-capacity tensile, compression and bending tests.
2.Why is a floor model required for HTD Series machines?
Floor models are used for high load capacities where maximum frame rigidity and stability are required during testing.
3. What types of tests can be performed?
The machine can perform tensile, compression, flexural and shear tests, with optional configurations for fatigue and cyclic loading.
4. Which materials can be tested?
Metals, alloys, plastics, composites, concrete, fasteners and structural components can be tested using suitable fixtures.
5. What is the load capacity range?
HTD Series floor models are available in multiple capacities depending on testing requirements and customization.
6. Does the machine comply with international standards?
Yes, the system is designed to meet ASTM, ISO, IS, EN and other global testing standards.
7. Is testing software included?
Yes, advanced PC-based software is provided for test control, data acquisition, real-time graph display and report generation.
8. Is the HTD Series suitable for continuous industrial use?
Yes, the machine is built for long-term, continuous operation in industrial and research laboratory environments.
