Home / ADMET Planar Bi-Axial Universal Testing Machine
ADMET eXpert 8000 planar biaxial test machines are designed to accurately measure the mechanical behavior of biomaterials, elastomers, fiber-reinforced composites, films, plastic fabrics, and technical textiles under various multi-axial stress conditions. Because different materials require different stress and strain ranges, each eXpert 8000 system is engineered to match your specific sample size, elongation needs, test speed, and force capacity. Whether you are studying anisotropic, hyper-elastic, or heterogeneous materials, the eXpert 8000 Planar Biaxial Testing Systems deliver reliable and repeatable performance. These systems offer capacities up to 5 kN, custom actuator strokes and speeds, and support both static and cyclic fatigue testing up to 10 Hz. Multiple grip options—including clamps, rakes, and suture grips—are available to suit unique specimen types. Users can also test at elevated temperatures with recirculating baths or heating elements. Advanced 2D or 3D Digital Image Correlation systems provide detailed strain field analysis, while the MTESTQuattro controller enables force, displacement, and strain control, along with synchronized or independent control of both axes.

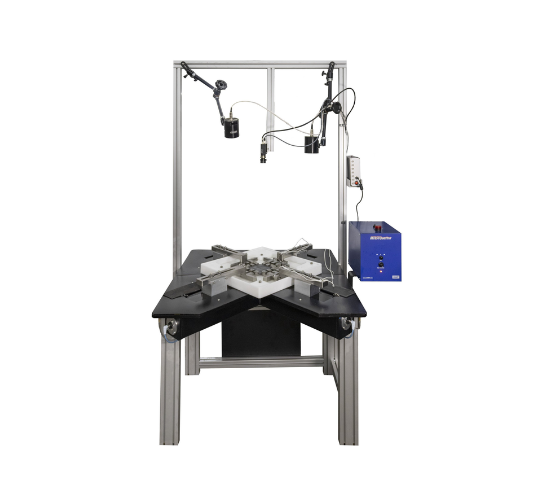

The ADMET eXpert 8000 Planar Biaxial Universal Testing Machine is a high-precision system designed to test materials under multi-axial stress conditions. Engineered for advanced research, it provides accurate and repeatable results for materials that exhibit complex mechanical behavior. The system is widely used for evaluating biomaterials, elastomers, composites, films, and technical textiles, where understanding anisotropic or heterogeneous performance is critical.
With customizable capacities, actuator strokes, speeds, and gripping solutions, the eXpert 8000 ensures that each configuration matches your exact sample geometry and testing requirements. It supports both static and dynamic fatigue testing, delivers precise control of X and Y actuators, and is compatible with advanced 2D/3D Digital Image Correlation systems for full-field strain measurement. Temperature-controlled baths and heating elements enable testing in real-world environmental conditions.
Purpose-built for demanding R&D environments, the eXpert 8000 series provides unmatched versatility, accuracy, and control for multi-directional material characterization.
Supports planar biaxial testing for multi-axial material characterization
Customizable force capacities up to 5 kN (1,125 lbf)
Actuator strokes and speeds tailored to specimen size and test requirements
Performs static and cyclic fatigue tests up to 10 Hz
Compatible with 2D/3D Digital Image Correlation (DIC) for advanced strain measurement
Multiple grip options available: clamps, rakes, sutures, and custom fixtures
Temperature-controlled baths or heating elements for elevated or fluid-based testing
Independent or synchronized control of X and Y actuators
Operates with MTESTQuattro controller for force, displacement, or strain-based control
Supports sine, square, triangular, and custom cyclic waveform profiles
Force Capacity: Up to 5 kN (1,125 lbf) per axis
Actuator Type: Servo-controlled linear actuators (X & Y directions)
Actuator Stroke: Customized based on specimen size and test requirements
Test Speed: Tailored to application; supports cyclic testing up to 10 Hz
Control Modes: Force, displacement, strain (with DIC), and multi-axis coordinated control
Waveform Options: Sine, square, triangular, and user-defined profiles
Strain Measurement: Compatible with 2D/3D DIC systems for full-field strain mapping
Temperature Control: Optional heating elements or recirculating baths for elevated-temperature or fluid testing
Grip Types: Clamps, rakes, sutures, and custom fixtures available
Motion Capability: Each axis programmable for independent or synchronized movement
Data Acquisition: High-speed sampling via MTESTQuattro controller
Frame Design: Rigid, high-stiffness structure for accurate biaxial loading
It is used to evaluate materials under biaxial loading conditions, ideal for biomaterials, elastomers, textiles, films, and composites.
Biaxial testing simulates real-world multidirectional stresses, providing more accurate material behavior compared to uniaxial tests.
The eXpert 8000 series is available in capacities up to 5 kN (1,125 lbf).
Yes, it can perform static and cyclic fatigue tests up to 10 Hz.
Yes, actuator stroke, speed, and grips can be customized based on specimen size and test requirements.
Multiple grip options are offered, including clamps, rakes, sutures, and custom grips.
Yes. It supports heated fluid baths or recirculating systems for elevated temperature or wet testing.
Yes. It is available with 2D or 3D Digital Image Correlation (DIC) for advanced strain field measurement.
It runs on ADMET’s MTESTQuattro controller, enabling force, displacement, strain, and cyclic waveform control.
Yes. Each axis can be programmed for independent or synchronized motion, depending on the test profile.
