HTS Series
Servo Hydraulic Universal Testing Machine
Hansa Technologies offers Electro-Mechanical Universal Testing Machines (500N–600kN) ensuring precision, durability, and versatility for all material tests.
Every test matters
we provide advanced universal testing machines
From R&D to quality control, from aerospace to academia, from high strength steels to elastomers, no matter the zoner, HANSA produces and supplies high quality testing equipment to meet modern day quality demands.

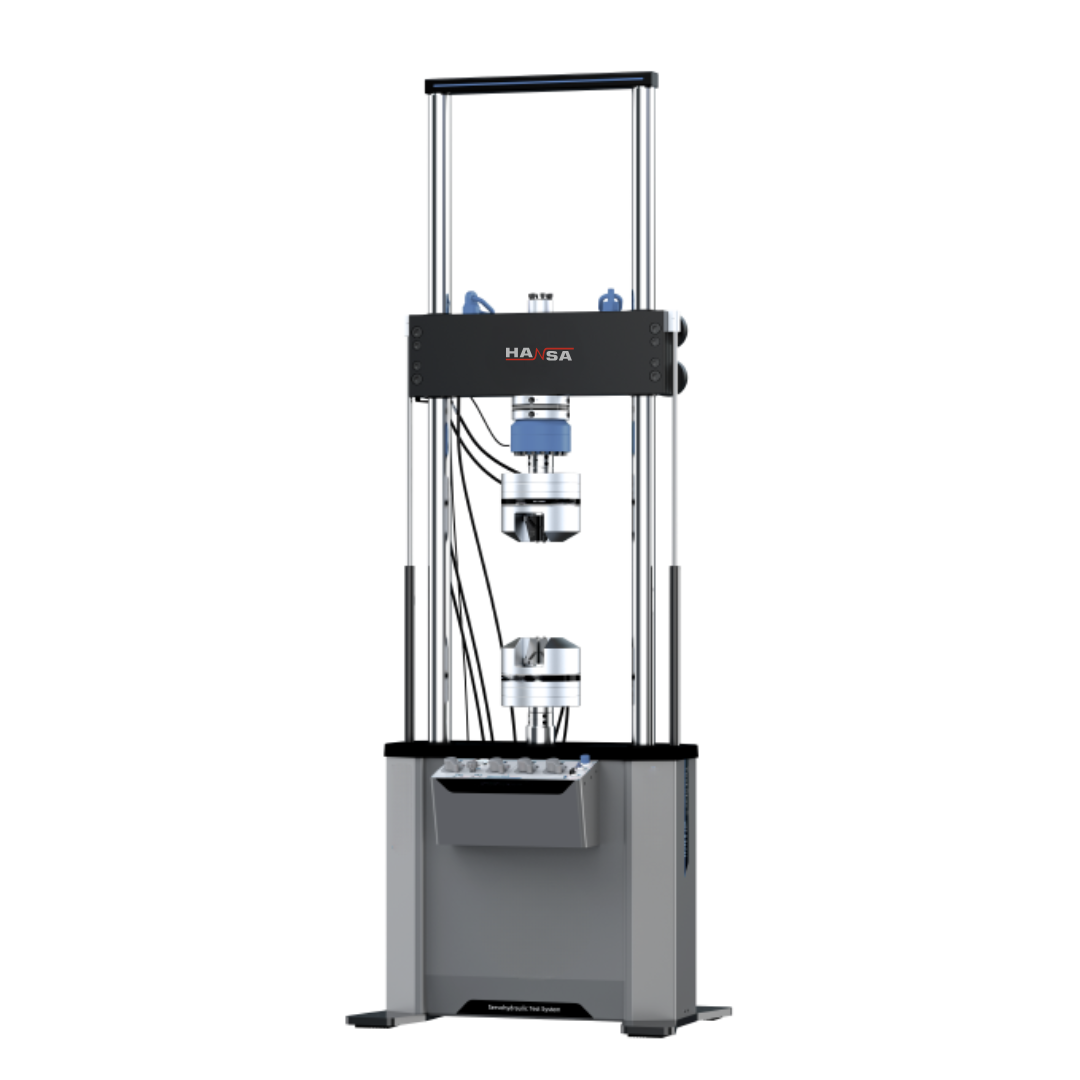

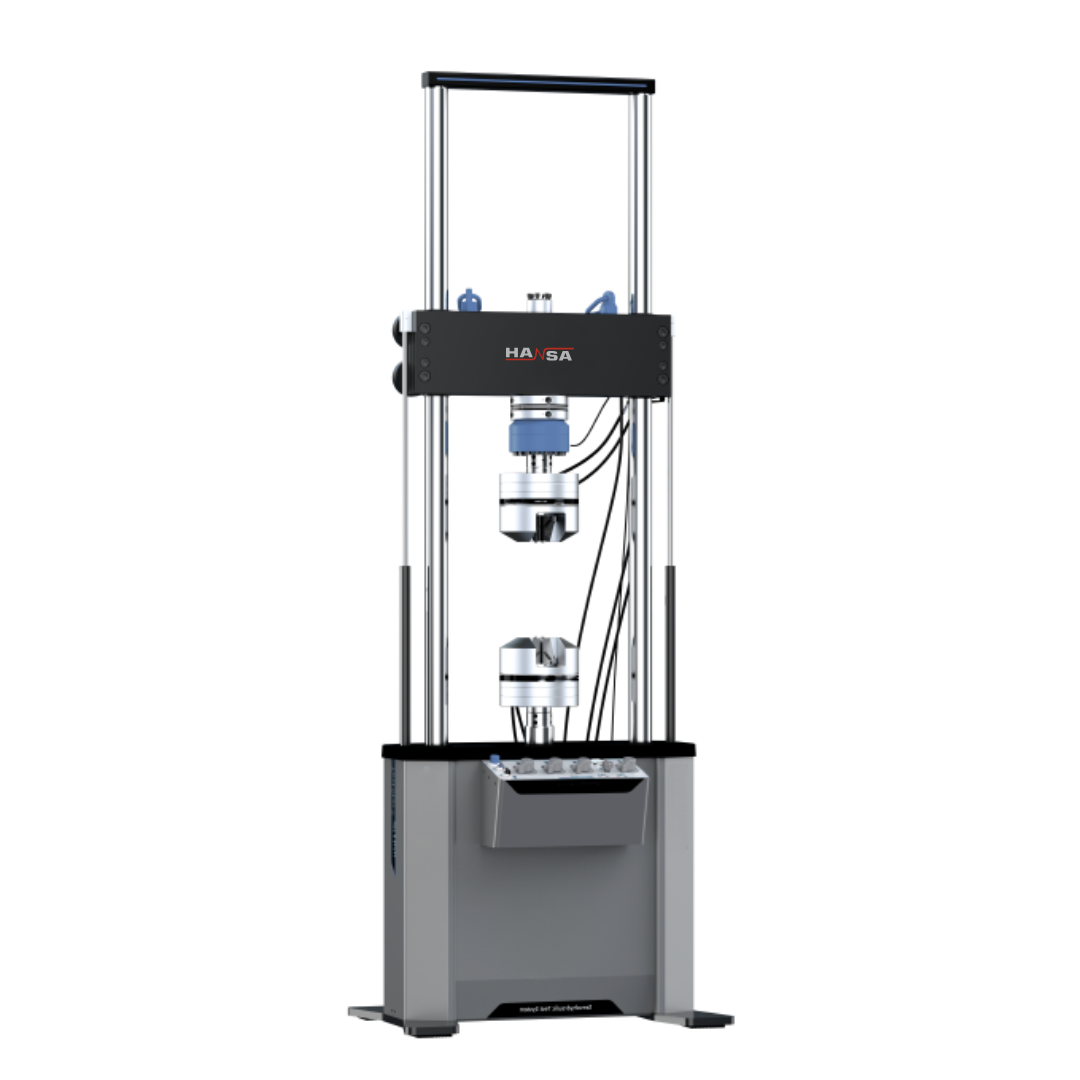

Table Top Servo Hydraulic UTM
Supports tensile, compression and flexural applications with a user-friendly design for modern laboratories.
Get QuoteServo Hydraulic UTM with Top Mounting Actuator
Advanced testing solution delivering reliable results for metals, polymers, composites and other materials.
Get QuoteServo Hydraulic UTM
Engineered for long-term material testing, ensuring accurate creep and stress relaxation measurements
Get QuoteHigh Capacity Servo Hydraulic UTM
Delivers reliable creep testing performance for metals, alloys, polymers and advanced material research.
Get QuoteTransforming Material Testing Technologies to meet modern day needs
Hansa Technologies offers a comprehensive range of Servo Hydraulic Universal Dynamic Testing Machines designed to deliver unmatched precision, versatility, and durability. Having force capacities ranging from 1kN to 3000kN, our machines cater to a wide spectrum of materials and applications from delicate materials testing to high strength steel analysis.
Built with state-of-the-art technology and robust engineering, these machines ensure consistent and repeatable results for tensile, compression, bending, shear, low cycle and high cycle fatigue, fracture mechanics tests. The advanced load frame design offers unmatched stiffness and minimizes deflection. The high resolution digital control system provides accurate measurement, precise control and smooth operation.
Equipped with the latest features such as intuitive software interfaces, programmable test sequences, and real-time data acquisition, users can perform complex tests with ease and confidence. The machines are compatible with various grips, fixtures, and extensometers to suit diverse industry standards, including ASTM, ISO, DIN, IS, BIS and more.
Whether in research laboratories, quality control departments, or educational institutions, Hansa’s HTD Series Dynamic Testing Machines empower professionals to evaluate material properties with exceptional accuracy, enabling informed decisions for design, production, and safety.

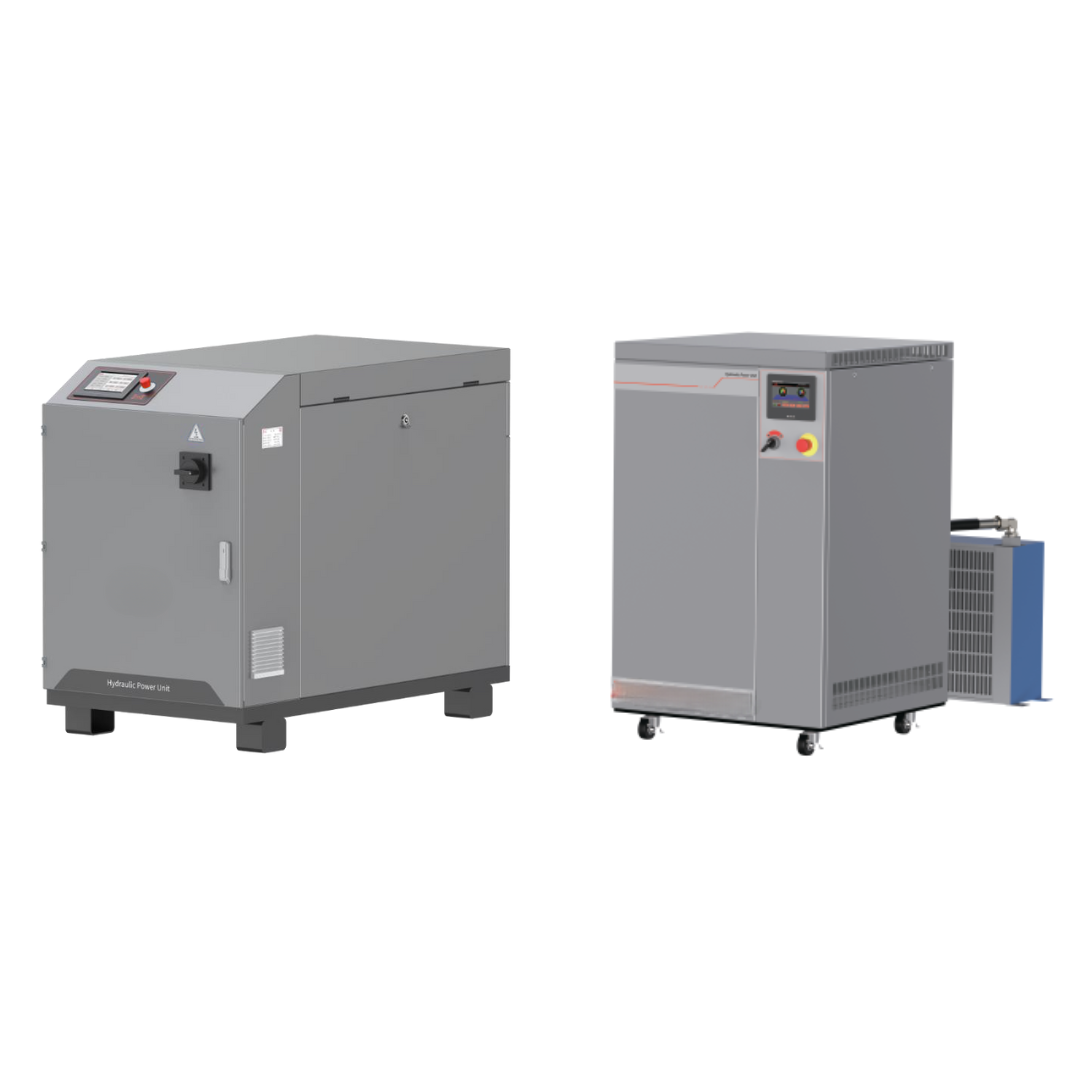

Hydraulic Power Unit: (20 - 100)
- Noise reduction design: motor and pump are completely immersed in hydraulic oil, so the noise was absorbed by oil. Special shock absorbing rubber is attached when the motor is mounted, to prevent vibration from transmitting to each other and reduce noise; fully enclosed structure once again reduces noise.
- Energy saving design: the variable displacement piston pump can automatically adjust the flow output according to the actual demand of the servo actuator, energy-saving and noise reduction.
- Touch screen control.
- Able to be controlled by software.
- Easy to open and maintain.
- Good cooling effect, can run for a long time and ensure that the oil temperature is controlled within 55℃.
- Wind cooling to grantee long time tests with temperature below 55℃.
- Safety protection: over-temperature, insufficient hydraulic oil, overpower, and test over, the motor will automatically turn off and alarm。
HPU Series Specification sheet
| Model | HPU20 | HPU40 | HPU63 | HPU100 |
|---|---|---|---|---|
| Rated flow (L/min) | 20 | 40 | 63 | 100 |
| Rated pressure (MPa) | 21 | 21 | 21 | 21 |
| Rated power (kW) | 11 | 18.5 | 30 | 45 |
| Tank capacity (L) | 200 | 200 | 400 | 400 |
| Filtration accuracy (µm) | 3 | 3 | 3 | 3 |
| Noise (dB) | 58 | 62 | 65 | 68 |
| Net weight (kg) | 340 | 350 | 480 | 500 |
| Length (mm) | 1370 | 1370 | 1670 | 1670 |
| Width (mm) | 780 | 780 | 780 | 780 |
| Height (mm) | 1155 | 1155 | 1305 | 1305 |
Hydraulic Power Unit : (360 - 900)
- Noise reduction design: motor and pump are completely immersed in hydraulic oil, so the noise was absorbed by oil. Special shock absorbing rubber is attached when the motor is mounted, to prevent vibration from transmitting to each other and reduce noise; fully enclosed structure once again reduces noise.
- Energy saving design: the variable displacement piston pump can automatically adjust the flow output according to the actual demand of the servo actuator, energy-saving and noise reduction.
- Touch screen control.
- Able to be controlled by software.
- Easy to open and maintain.
- Good cooling effect, can run for a long time and ensure that the oil temperature is controlled within 55℃.
- Wind cooling to grantee long time tests with temperature below 55℃.
- Safety protection: over-temperature, insufficient hydraulic oil, overpower, and test over, the motor will automatically turn off and alarm。
HPU Series Specification sheet (360 – 900)
| Model | HPU360 | HPU540 | HPU720 | HPU900 |
|---|---|---|---|---|
| Rated flow (L/min) | 360 | 540 | 720 | 900 |
| Number of pump sets | 2 | 3 | 4 | 5 |
| Rated pressure (MPa) | 21 | 21 | 21 | 21 |
| Rated power (kW) | 180 | 270 | 360 | 450 |
| Tank capacity (L) | 1200 | 1800 | 2400 | 3000 |
| Filtration accuracy (µm) | 3 | 3 | 3 | 3 |
| Length (mm) | 2130 | 2850 | 3570 | 4290 |
| Width (mm) | 1600 | 1600 | 1600 | 1600 |
| Height (mm) | 2100 | 2100 | 2100 | 2100 |
Technical Parameters :
- Main processor: VortexDX86 800 MHz.
- Control frequency: 2.5 kHz / 10kHz.
- PC communication interface: USB 2.0 Full speed or Ethernet 10/100Mbit.
- Encoder input channel: square wave max 32MHz, app.300kHz.
- SSI signal input: 300kHz.
- Digital input/output: 24V; Eight pcs.
- Serial sensor interface: COM1(built-in).
- Synchronous data acquisition and motion control: satisfactory.
- iSI bus expansion slot: 3.
- Load and strain resolution: ± 5,00,000 steps.
- Digital position, load and strain control, smooth transition between control modes without impact.
- The synchronous sampling and display data is 10kHz, enabling dynamic testing of trapezoidal, triangular and sinusoidal waves.
- Power amplifier with servo valve inside: 300mA.

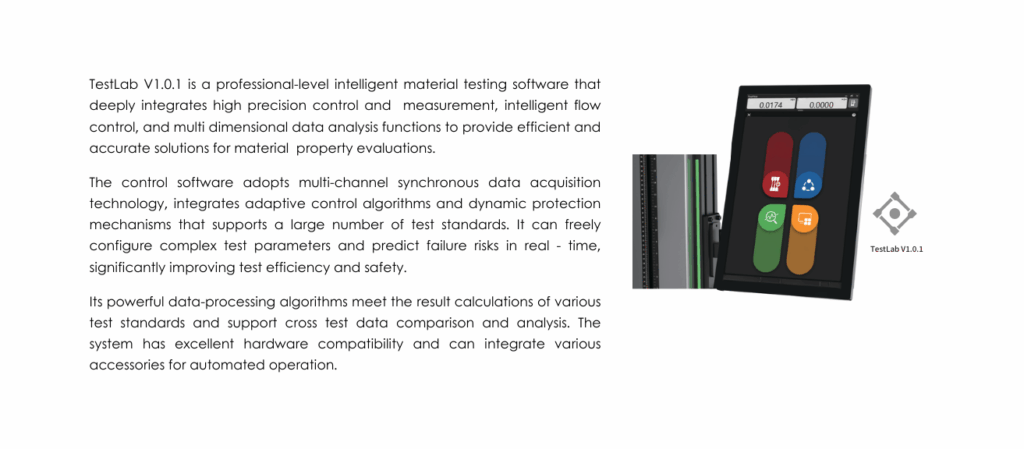

TestLab: Material Testing Software
Display product with beautiful mixed line style with highly customized options.

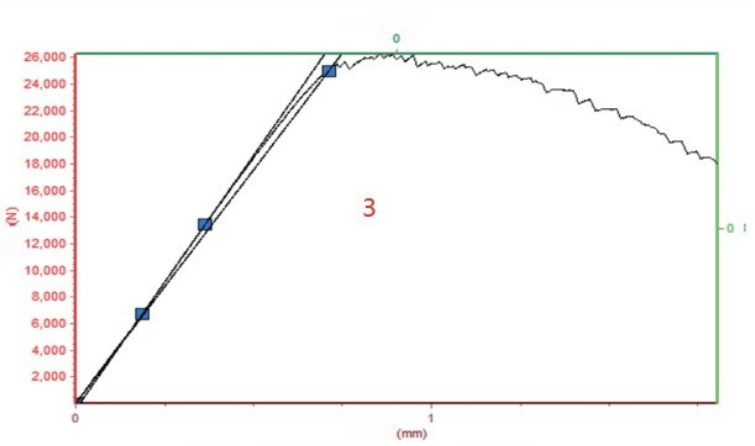

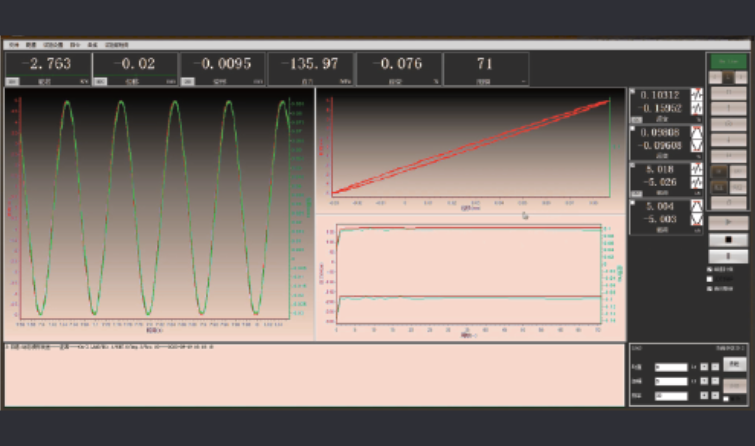

Load vs Displacement Graph
Test Control Parameters
Test Method Selection

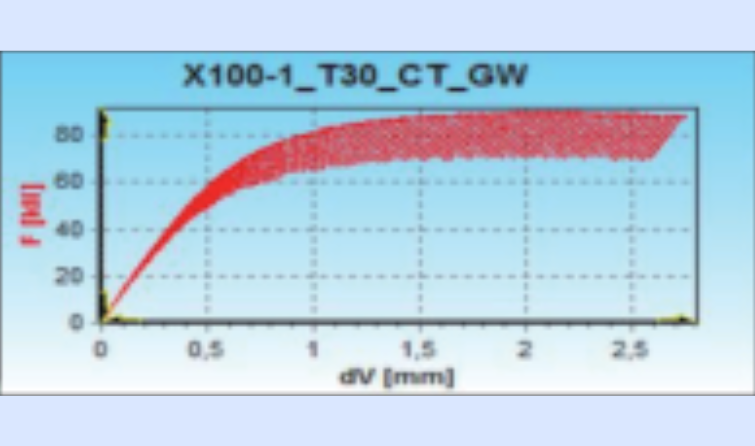

Final Output Graph Test Results
The following software functions need supporting test accessories, such as extension meter, COD gauge, fixture, high temperature furnace, environmental box, etc.

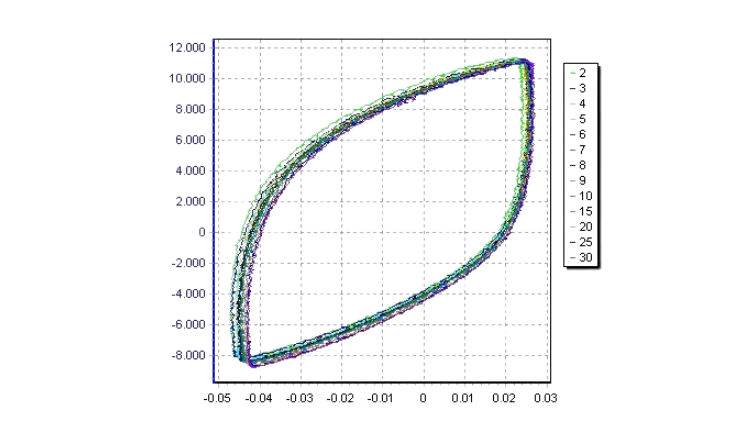

1. High-low cycle test module
Meet the relevant standards of high-low cycle test ASTM E466, ASTM E606, ASTM A1034, IS16172, etc.
2. Fracture test module
Meet KIC test, CTOD test, JIC test, da/dN crack growth rate test related standards (ASTM E399, ASTM 1820, ISO12135, GB/T21143, etc.
Suitable for CT, SEB, MT and other sample shapes.
Data result statistics module can generate R resistance curve.
CTOD and JICC tests support multi-sample and single-sample methods.
Crack growth test supports K-increasing, K-decreasing, and constant K.
3. Elastomer test module
Independent test program to improve customer operability.
meet elastomer damping test standards.
Variable amplitude, frequency conversion and other test actions can occur in the test.
Full report on built-in elastomer.
4. Waveform combination action test
Can be freely combined, there is no quantity limit.
Free start test protection conditions to protect different waveforms.
Can save the combination waveform setting scheme, easy to recall.
5. Custom waveform
Can input irregular waveform to realize simulation test, spectrum and other tests.
HTD Series Specification sheet
| Model | HTD 25 | HTD 50 | HTD 100 | HTD 250/300 | HTD 500 | HTD 1000 | HTD 2000 |
|---|---|---|---|---|---|---|---|
| Force | 25kN | 50kN | 100kN | 250kN / 300kN | 500kN | 1000kN | 2000kN |
| Frame | Two columns structure, the actuator mounted under the worktable of machine | ||||||
| Actuator | Max. force ±25kN | Max. force ±50kN | Max. force ±100kN | Max. force ±250kN / ±300kN | Max. force ±500kN | Max. force ±1000kN | Max. force ±2000kN |
| Actuator Specs | Rated pressure: 210 Bar Structure: Double ended, Double action symmetrical structure Actuator stroke: 150mm Seal type: Clearance seal |
||||||
| Servo valve | Make: Moog Flow rate: 19L/min Max. Working pressure: 315 Bar Qty: 1 piece |
Make: Moog Model: G761 Flow rate: 63L/min Max. Working pressure: 315 Bar Qty: 1 piece or 2 pcs |
|||||
| Displacement transducer | Make: MTS Measurement range: 150mm |
Model: R Series Resolution: 1µm |
|||||
| Load cell | ±25kN | ±50kN | ±100kN | ±250kN / ±300kN | ±500kN | ±1000kN | ±2000kN |
| Load cell Specs | Make: Interface Repeatability: ±0.02%FS Overload protection: 300%FS Structure: Fatigue level spoke-type load cell Sensitivity: 2mV/V |
||||||
| Alignment fixture | Adjust the alignment of the grips in eight directions | ||||||
| Intuitive Centralized Controls | Control crosshead lifting and lowering Control hydraulic grips Control emergency stop and the movement of actuator |
||||||

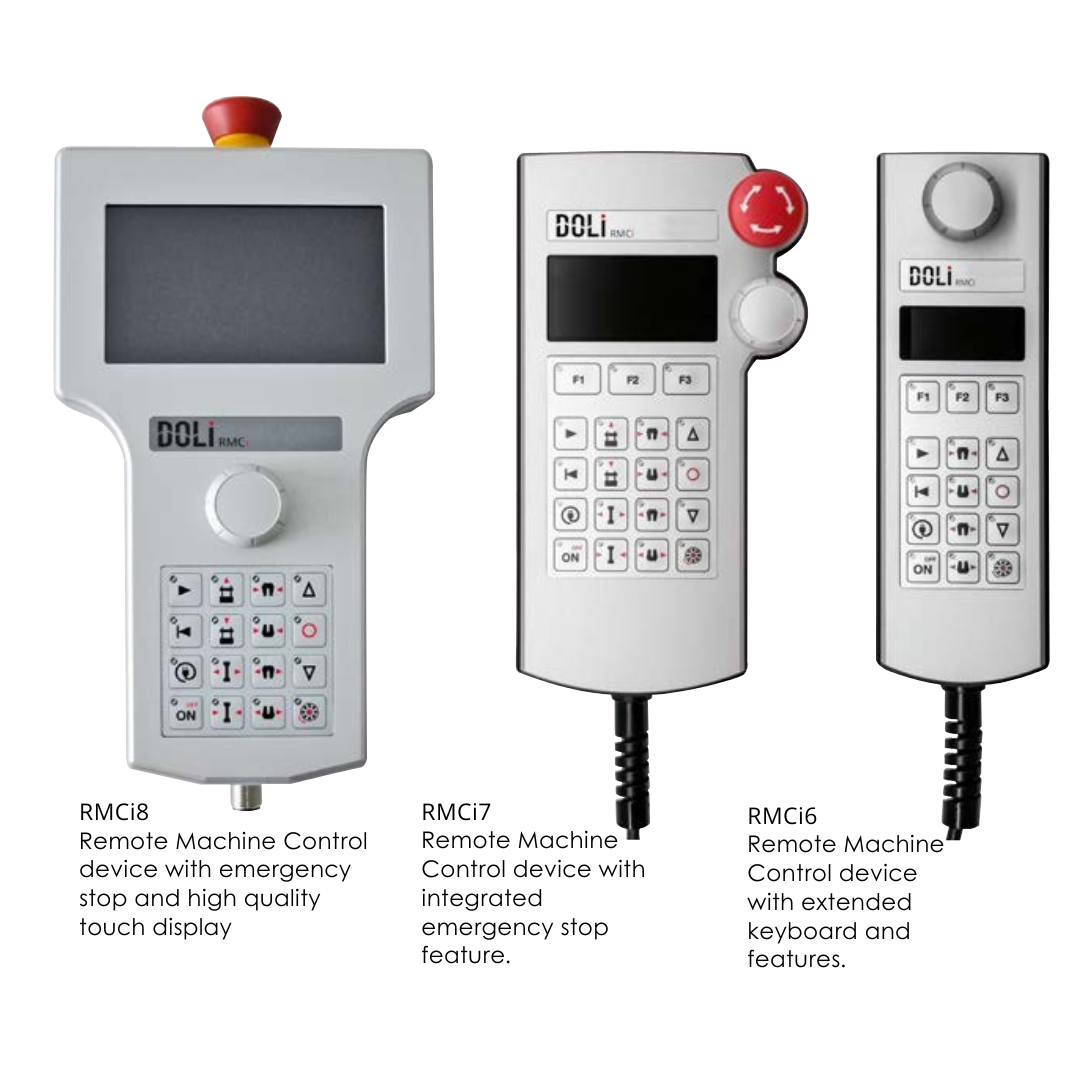

| Controller | Make: DOLI, German | Model: EDC i20 / i50 / i70 | |||||
| Accuracy | Load, strain, stroke, Better than ±0.5% of reading | ||||||
| Frequency (Hz) | 60 | 30/50 | 30 | 20 | |||
| Amplitude (mm) | Depending on HPU flow rate | ||||||
| Wave type | Sine wave, square wave, triangular wave, trapezoid wave, oblique wave, custom waveform and so on | ||||||
